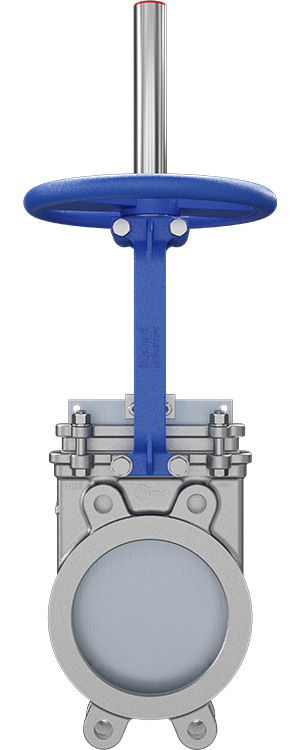

Knife Edge Gate Valve
(Model - MI - MS2)
The MI-MS2 Stainless Steel Slurry Knife Gate Valve is An UNI & BI-DIRECTIONAL for Industrial Service Applications This Body And Seat Assures Non-clogging Shut Off On Suspended Solids In Industries Such As:
- Pulp And Paper
- Food And Beverage
- Wastewater Treatment Plants
- Bulk Handling
- Chemical plants
- Mining
Sizes: DN 50/2" to DN 500/20"
Working Pressure:
DN 2"/ 50mm to DN 10"/ 250 mm - 150 psi / 10 bar
DN 12"/ 300mm to DN 16" / 400 mm - 90 psi / 6 bar
DN 18"/ 450mm - 75 psi / 5 bar
DN 20"/ 500mm to DN 24" / 600 mm - 60 psi / 4 bar
Standard flange connection:
DIN PN 10 and ANSI B16.5 (class 150) and Table "E" & "D"
Other Flanges Connections Available on Request
DIN PN6 / DIN PN16 / DIN PN25 / ANSI125
| PART | MATERIAL OF CONSTRUCTION: |
|---|---|
| 1 - BODY | CF8, CF8M, WCB, OTHER ON REQUEST |
| 2 - GATE | AISI 304 AISI 316, OTHER ON REQUEST |
| 3 - SEAT | METAL TO METAL / SOFT SEAT |
| 4 - PACKING | PTFE IMPREG. SYNTH. FIBRE |
| 5 - GLAND FOLLOWER | CF8, CF8M, WCB |
| 6-STEM | AISI 304, AISI 316, OTHER ON REQUEST |
| 7-STEM NUT | FORGE BRASS / EN-9/D.I |
| 8 - YOKE | MILD STEEL, S.S. 410 |
| 9 - SEAT RING | AISI 304,AISI 316 (INTEGRAL) |
| 10-OPERATION | MANUAL |
| 11- FASTNERS | HIGH-TENSILE (ZINC PLATED) |
| 12-HAND WHEEL | S.G. IRON |
| 13-STEM PROTECTOR | MILD STEEL (ZINC PLATED) |
