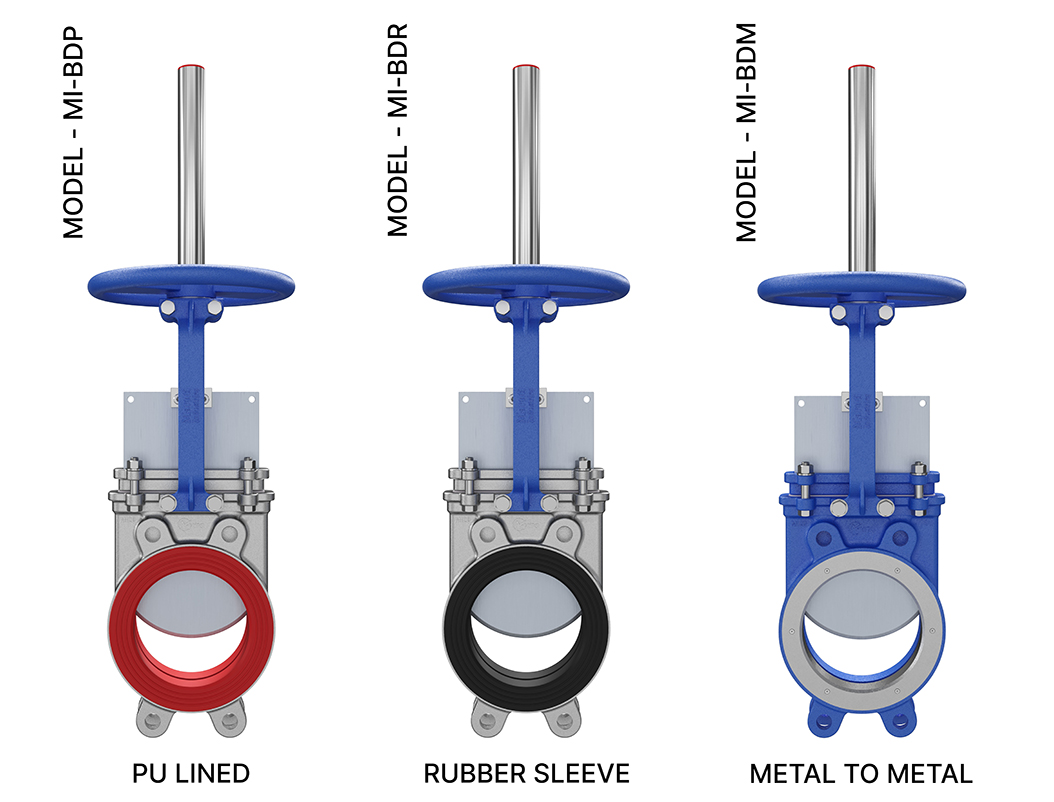

Slurry Knife Edge Gate Valve

The Knife gate is an BI-DIRECTIONAL semi lug type & flarge type valve designed according to MSS-SP-81 for industrial service applications. The design of the body and seat assures non clogging shut off on suspended solids in industries such as:

Pulp and Paper
Waste Water Treatment Plants
Power plants
Food and Beverage
Mining
Steel Plant
Chemical plants
Pharma
Slurry Application
etc.

Sizes:DN 50/2" to DN 400/16" (larger diameters on request)"

Working Pressure:

DN 2"/ 50mm to DN 10"/ 250 mm - 150 psi / 10 bar

DN 12"/ 300mm to DN 16" / 400 mm - 90 psi / 6 bar

DN 18"/ 450mm - 75 psi / 5 bar

Standard flange connection:

DIN PN 10 and ANSI B16.5 (class 150) and Table E

Other Flanges Connections Available on Request

DIN PN6 / DIN PN16 / DIN PN25 / ANSI125
