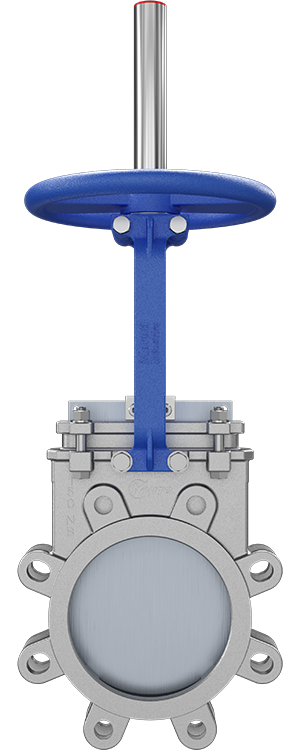

Heavy Duty Knife Edge Gate Valve
(Model - MI-MS)
TheMI-MS knife gate is an UNI & BI-DIRECTIONAL lug type valve designed according to MSS-SP-81 for industrial service applications. The design of the body and seat assures non clogging shut off on suspended solids in industries such as:
- Pulp and Paper
- Power plants
- Waste Water Treatment Plants
- Food and Beverage
- Mining
- Steel Plant
- Chemical plants
- Oil & Gas
Sizes: DN 50/2" to DN 1000/40" (larger diameters on request)
Working Pressure:
DN 50/2" to DN 450/18: 10 kg/cm2 / 150 psi DN 500/20 up to: 5 kg/cm2 / 80 Psi
Standard flange connection:
DIN PN 10 and ANSI B16.5 (class 150) and Table E Other Flanges Connections Available on Request
| PART | STAINLESS STEEL LIST: |
|---|---|
| 1 - BODY | CF8, CF8M, WCB, OTHER ON REQUEST |
| 2 - GATE | AISI 304 AISI 316 |
| 3 - SEAT | METAL TO METAL/SOFT SEAT |
| 4 - PACKING | PTFE IMPREG. SYNTH. FIBRE |
| 5 - GLAND FOLLOWER | DUCTILE IRON CF 8,CF8M, WCB |
| 6 - STEA | AISI 304, AISI 316 |
| 7 - STEM NUT | FORGE / BRASS / EN-9/D.I |
| 8 - YOKE | MILD STEEL, S.S. 410 |
| 9 - SEAT RING | AISI 304, AISI 316 |
| 10 - OPERATED | PNEUMATIC/ MANUAL / BEVAL GEAR |
| 11 - HAND WHEEL | HIGHTENSILE |
| 12- HAND WHEEL | S.G. IRON |
| 13- STEM PROTECTOR | MILD STEEL (ZINC PLATED) |
