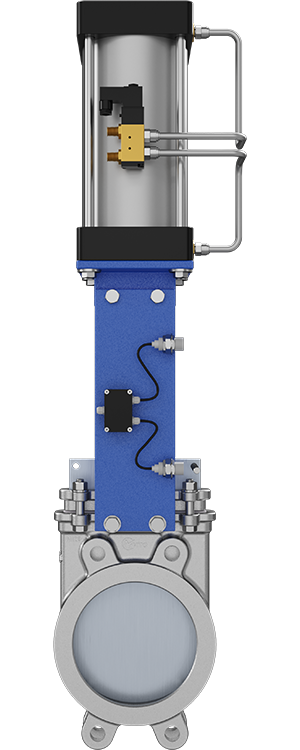

Model MI-MP2_

Knife Edge Gate Valve
(Model - MI - MP2)

The MI-MP2 Model Pneumatic Knife Gate Valves is An UNI & BI-Directional Lug Type Valve Designed According To MSS-SP81 For Industrial Service Applications. The Design of The Body And Seat Assures Non-Clogging Shut Of On Suspended Solids in Industries Such As:

  • Pulp And Paper
  • Food And Beverage
  • Wastewater Treatment Plants
  • Bulk Handling
  • Chemical plants
  • Mining

Sizes:DN 50/2" to DN 1000/40"

Working Pressure:

DN 2"/ 50mm to DN 10" / 250 mm - 150 psi / 10 bar

DN 12"/ 300mm to DN 16" / 400 mm - 90 psi / 6 bar

DN 18"/ 450mm - 75 psi / 5 bar

DN 20"/ 500mm to DN 24" / 600 mm - 60 psi / 4 bar

DN 28"/ 700mm to DN 40" / 1000 mm - 30 psi / 2 bar

Standard flange connection:

DIN PN 10 and ANSI B16.5 (class 150) and Table "E" & "D"

Other Flanges Connections Available on Request

DIN PN6 / DIN PN16 / DIN PN25 / ANSI125

PART MATERIAL OF CONSTRUCTION:
1 - BODY WCB, CF8, CF8M/OTHER ON REQUEST
2 - GATE AISI 304 / AISI 316/ OTHER ON REQUEST
3 - SEAT METAL TO METAL/SOFT SEAT
4 - PACKING PTFE IMPREG. SYNTH. FIBRE
5 - GLAND FOLLOWER CF8,CF8M, WCB
6-SOLENOID VALVE 5/2 & 5/3 WAY SINGLE OR DOUBLE COIL
7- LIMIT SWITCH MECHANICAL, PROXIMITY
8 - YOKE MILD STEEL
9 - SEAT RING AISI 304 / AISI 316 (INTEGRAL)
10-OPERATION PNEUMATIC OPERATED
11- FASTNERS HIGH-TENSILE (ZINC PLATED)
12-CYLINDER TYPE DOUBLE ACTING
13-CYLINDER BERRAL ALUMINUM
