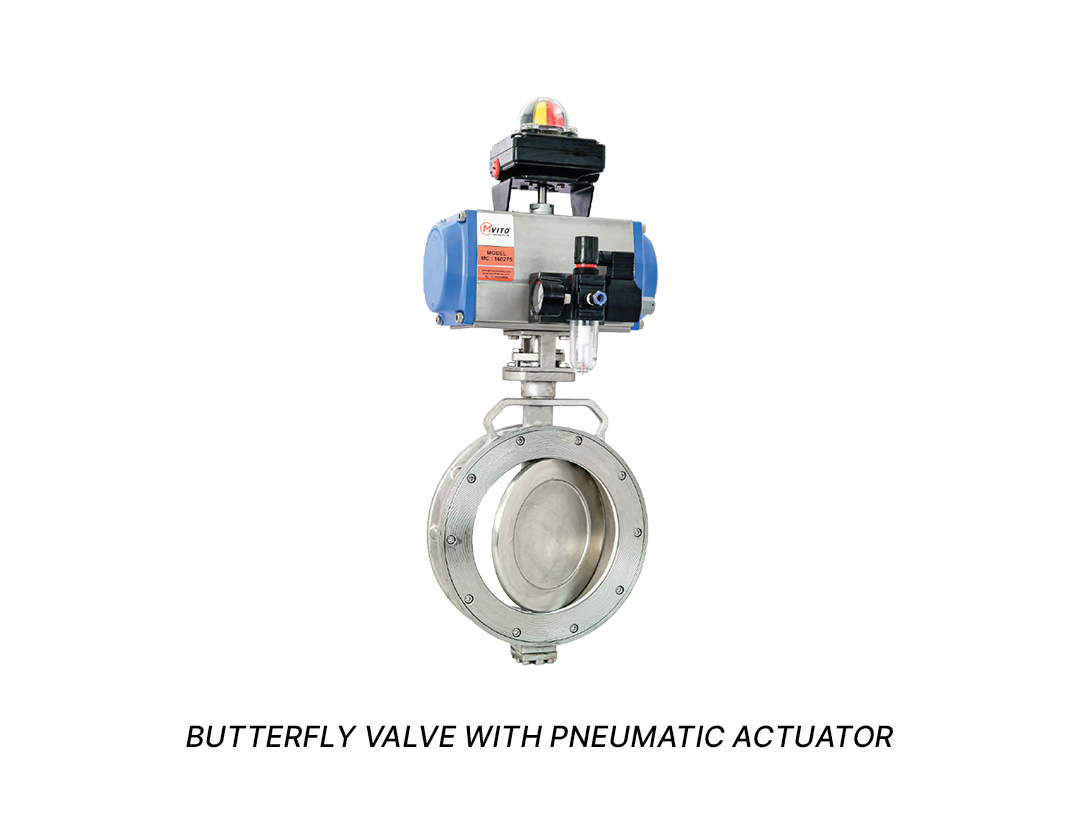

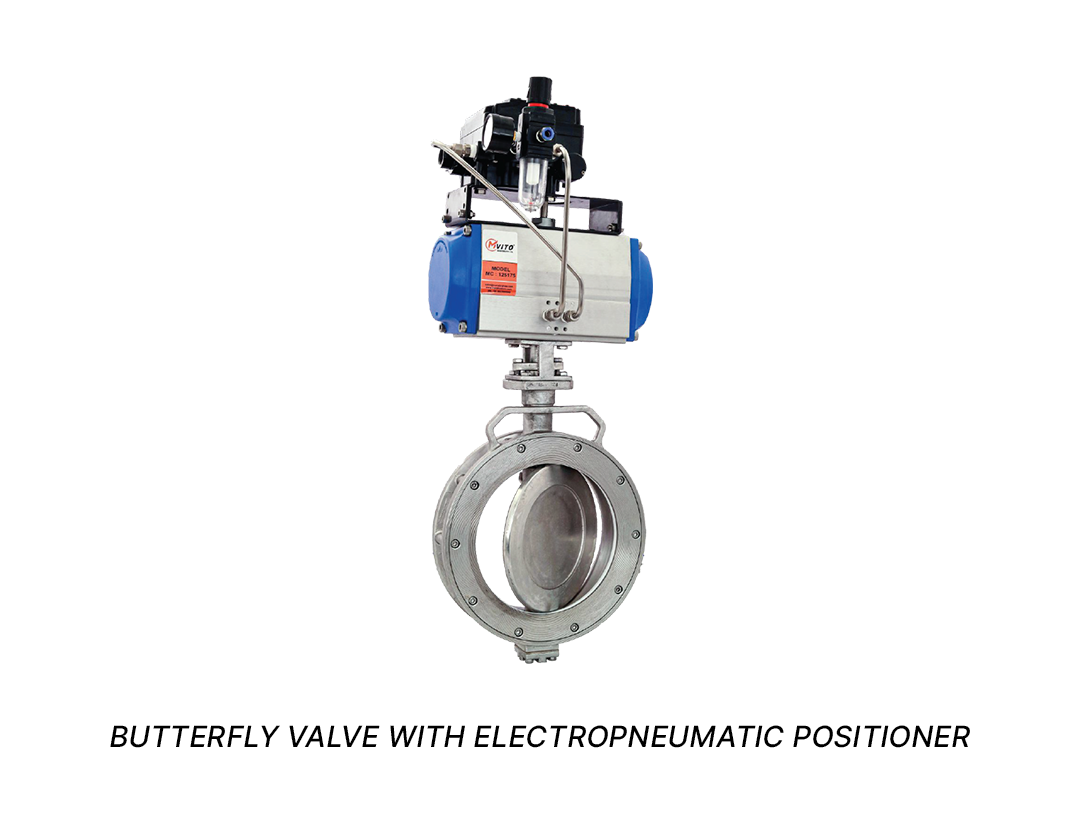

Technical Data
- MANUFACTURING STD. ISO 5752/ Bs5155 / API 609/IS 13095
- INSPECTION AND TESTING STD. : BS 6755 (PART-1)/ API 598/ EN 12266-1
- END CONNECTION: WAFER TO SUIT ANSI B16.5 150#/ANSI 125#
- BS TO TAB D & E IS 6392 NP 0.6/1.0/1.6
- FACE TO FACE: BS 5155/ ISO 5752/ API 609
- TOP FLANGE DRILLING: ISO 5211
| PART NOMENCLATURE | MATERIAL OF CONSTRUCTION: |
|---|---|
| 1 - BODY | CAST IRON / S.G. IRON / ASTM A216 GR. WCB
ASTM A351 GR. CF8 / ASTMA 351 GR. CF8M |
| 2 - DISC | CAST IRONS.G. IRON / ASTMA 216 GR. WCB
ASTM A 351 GR. CF-8M, DISC ENCAPSULATION |
| WITH VITON. NITRILE, EPDM, NEOPRENE & HYPALON | |
| AVAILABLE EPOXY COATED | |
| 3 - SPINDLE | AISI 410/AISI 304 / AISI 316 |
| 4-SEAT | NITRILE EPDM/SILICON / VITON/HYPALON / PTFE |
| 5 - '0' RING | NITRILE EPDM |
| 6-PIN | AISI 304 / AISI 316 |
| 7 - LEVER 7 a - GEAR BOX |
M.S. FABRICATED
CAST IRON |
| 8 - HAND WHEEL | MS FABRICATED |
| 9 - NAME PLATE | ALUMINIUM |
| 10- OPERATED | BEVAL GEAR |
| 11- FASTNERS | HIGHTENSILE |
